Navigation

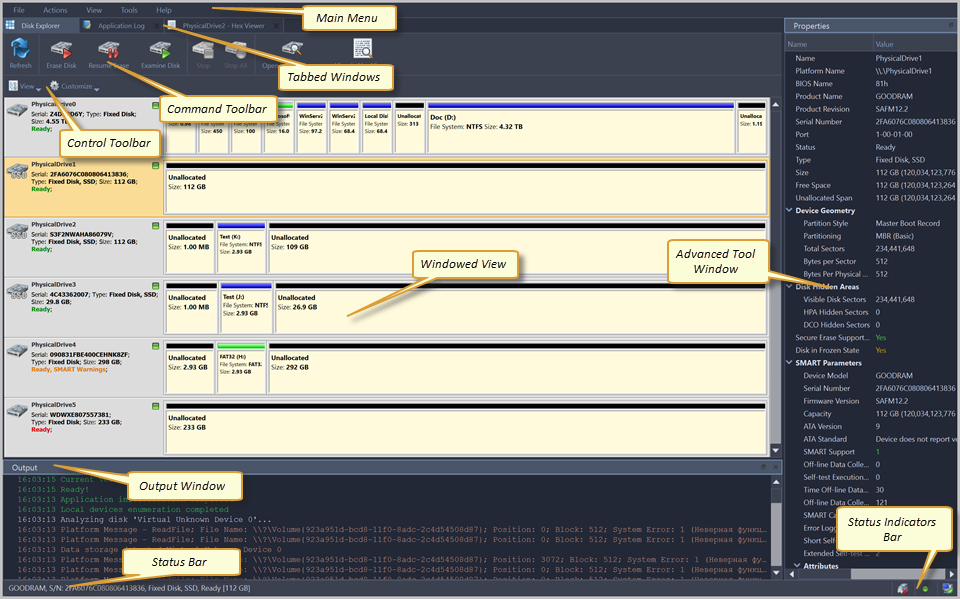

The Active@ KillDisk interface is organized into several key areas designed for efficient workflow and easy navigation:
- Toolbar and Menu Bar
- Located at the top of the window, the toolbar provides quick access to commonly used commands such as starting processes, viewing reports, and accessing preferences. The menu bar offers comprehensive access to all application features organized by category.
- Tabbed Windows
- Contains the window that is currently active. By default, the central area displays all detected storage devices, including internal drives, external USB drives, and network-attached storage. Each device entry shows essential information such as capacity, model name, serial number, and current status. You can select one or multiple devices to perform operations on them simultaneously.
- Properties Panel
- When a device is selected, the properties panel displays detailed information about the drive, including partition structure, file system type, SMART attributes, and hardware specifications. This information helps you verify that you have selected the correct device before performing any operations.
- Status Bar
- Located at the bottom of the window, the status bar shows the current application state, number of selected devices, network and status during active operations.
- Support of convenient placement of auxiliary windows
- Windows such as the Output Window and Advanced Tool Window can be detached from the main application window and positioned individually anywhere on the screen. Window positions and sizes are saved automatically by the application and will be restored upon the next launch of the program. To reposition a window individually, click and drag its title bar to the desired location on the screen. The window size can also be adjusted individually. To re-attach auxiliary windows back to the main application window, double-click the title bar of the auxiliary window, or drag it with the mouse to the corresponding area of the main application window.
The full functionality and features of these components are discussed in corresponding sections below.
